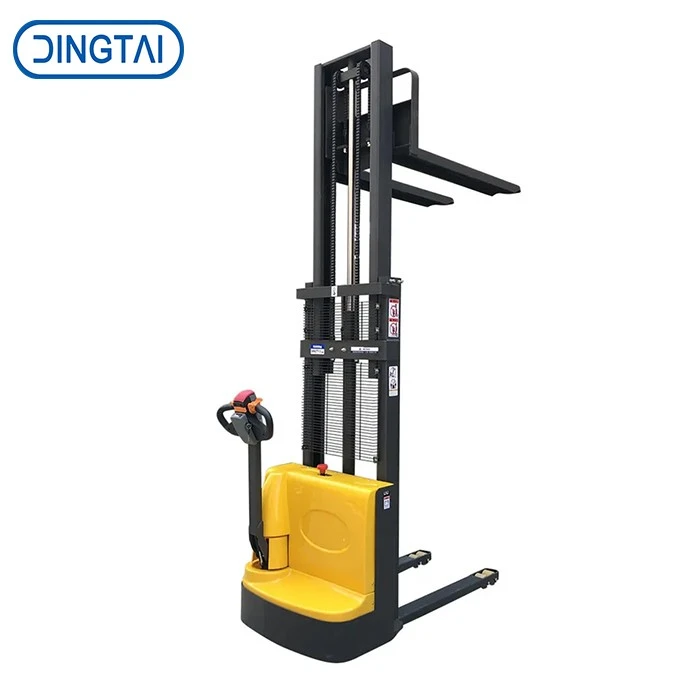

Electric Hydraulic Stacker is a storage and handling equipment powered by battery power and used for loading and unloading, stacking and short-distance transportation. Its load capacity is 1000-1500 kg, and the lifting range is generally 1.6 meters to 3.5 meters.
It is widely used in many fields like the following:
1. Warehousing and logistics: It used for pallet cargo storage and retrieval in warehouse shelf areas, docks and other scenarios, which is convenient, fast, time-saving and labor-saving.
2. Manufacturing: Assisting equipment maintenance or material turnover in the workshop, greatly improving work efficiency.
Operate Video:
Feature of Electric Hydraulic Stacker:
Main Features:
1. Operational characteristics:
(1) Reasonable design:
Equipped with ergonomic handle, integrated lifting, direction control and stepless speed change functions.
According to customer requirements, it can support wireless remote control or handle operation, and the stop mechanism when the hands are released ensures safety.
2. Safety and efficiency
(1) Intelligent protection: Equipped with low voltage automatic power off, explosion-proof valve and LED power display to prevent overload or battery loss.
(2) Efficient operation: The lifting speed of the electric hydraulic pump is 3-5 times faster than that of the manual type.
The pulley is made of alloy steel or wear-resistant nylon composite material, and the surface is hardened to reduce friction loss with the track and can withstand the impact load of frequent lifting operations.
The pulley group is embedded in the grooved track inside the C-type gantry to form a rolling guide structure to ensure that the fork can be lifted vertically without deviation.
Each plate chain is forged from chromium-molybdenum alloy steel with a yield strength of ≥1200MPa. The surface is carburized and hardened to significantly improve wear resistance and impact resistance.
1244 plate chains are connected in series through articulated shafts to form a flexible transmission belt. When a single chain is damaged, it can be quickly replaced to avoid the cost waste caused by overall replacement.
Product Specifications
|
Product Name |
Electric Hydraulic Stacker |
|
Load capacity (kg) |
1000-1500kg |
|
Lifting Height |
1.6-3.0m |
|
Power type |
Electric loading and lifting |
|
Color |
Yellow and also can customized |
|
Self Weight (kg) |
520-580kg |
|
Battery Capacity |
24V/80Ah(customizable) |
Packing & Manual Walkie Forklift Stacker:
Package Type: Wooden box and pallet and stretch film.
We will evenly cover the surface of the equipment with the wrapping film, and keep the film width above 420mm to prevent the film from breaking or loosening; we will add rubber-coated roller protection to the corners of the stacker to reduce wear on the film surface.
Our Advantage of Manual Walkie Stacker
After sales service
We supply the quality warranty for two years. If any of quality problem, we will send new one free. We have after sales technique team; can communicate online by facetime video one time.
Rich experience
We have more than 29 years' experience in this industry. That means, we can preview the problems for the orders and products.
