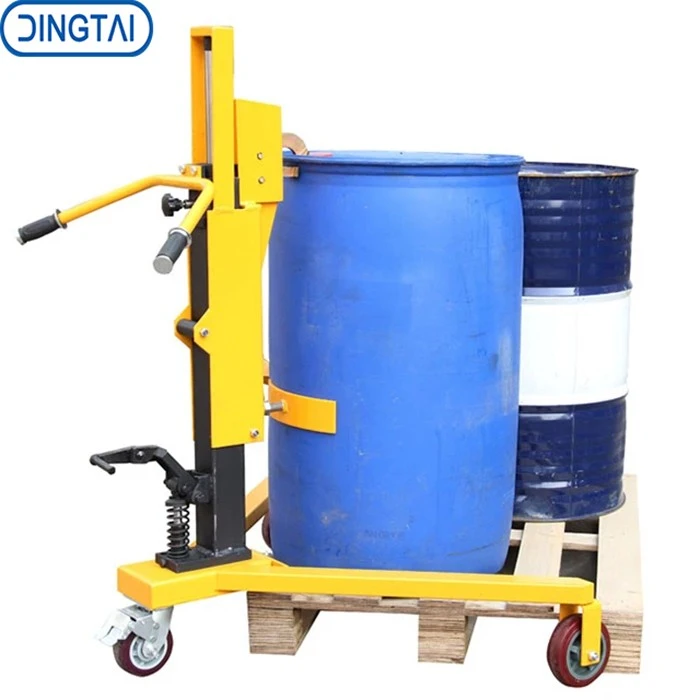

Manual Oil Drum Lifter is an integrated handling and stacking equipment designed specifically for cylindrical containers (such as oil drums, chemical drums, etc.). The manual oil drum lift can be raised to a certain height, greatly improving work efficiency. It has both handling functions and automatic stacking capabilities and is suitable for industry and warehousing. Transporting by oil drum truck is simple and labor-saving, saving manpower and improving work efficiency.
It is widely used in many fields like the following:
Logistics transit: Use forklifts to quickly stack before palletized transportation. Multi-scenario stacking and temporary storage management
Layered stacking storage: Use the hydraulic lifting function to stack oil barrels to different heights as needed to optimize storage space utilization. For example, multiple oil barrels are temporarily stored in layers in the temporary transfer area for subsequent sorting or shipment.
Safety design: Equipped with a mechanical locking mechanism to ensure that the barrel body is stable during stacking to prevent slipping.
Cross-device collaborative operation. Cooperate with acid pushers, pallet trucks and other equipment to achieve the transfer connection of oil barrels between different workstations. For example, after grabbing an oil barrel from a corner of the pallet, it is transferred to a designated area for the next step of processing.
Operate Video:
Feature of Manual Oil Drum Lifter:
Main Features:
The collet can be adjusted quickly according to the size of the bucket, and it is easy to clamp and carry.
Circular foot support and wide mouth can better protect the barrel surface.
Rated lifting weight up to 350KG.
Product Specifications
|
Product Name |
Manual Oil Drum Lifter |
|
Load capacity (kg) |
350kg |
|
Max Lifting Height |
300mm |
|
Power type |
Manual pushing |
|
Overall Dimensions (mm) |
925*830*1116mm/905*1270*1116mm |
|
Self Weight (kg) |
48-50kg |
|
Wheel |
PU Wheel |
Packing & Manual Oil Drum Lifter:
Package Type: By stacking multiple layers of corrugated cardboard or adding corner reinforcement strips, the compressive strength is improved to adapt to the weight of equipment with mainly metal parts (usually 50-100kg).
EPE pearl cotton or honeycomb cardboard is embedded in the carton to focus on protecting precision parts such as hydraulic cylinders and forks, reducing the risk of damage caused by transportation vibration.
Separately package detachable parts (such as universal wheels and handles) to reduce the volume in the assembled state and improve the utilization rate of storage and transportation space.
Our Advantages of Manual Oil Drum Lifter
Humanized design:
The ergonomically designed handle is rubberized and non-slip, which improves the comfort of holding; the knob-type pressure relief valve and simple clip design reduce the complexity of operation.
No need for professional training:
Its mechanical structure is intuitive, and ordinary staff can quickly master the basic operating skills.Some models are equipped with height-adjustable handles to meet the needs of operators of different heights and reduce the physical burden caused by bending or overstretching.
