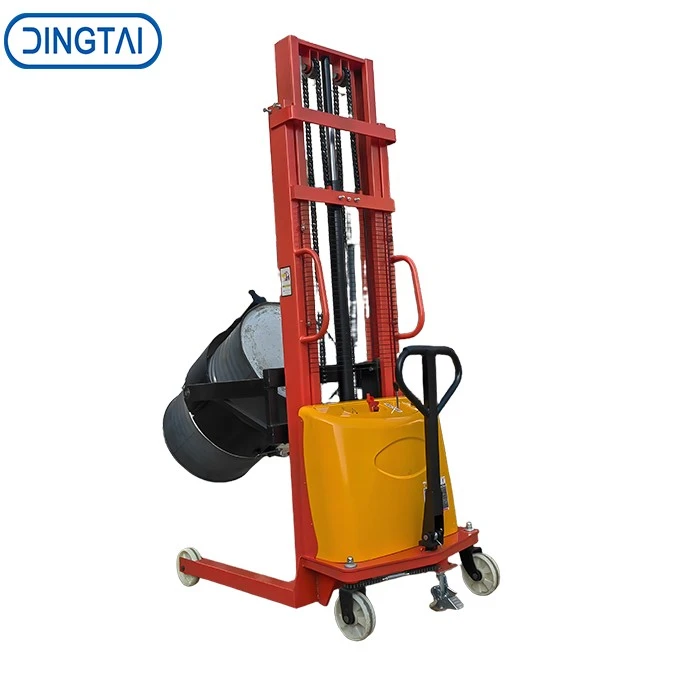

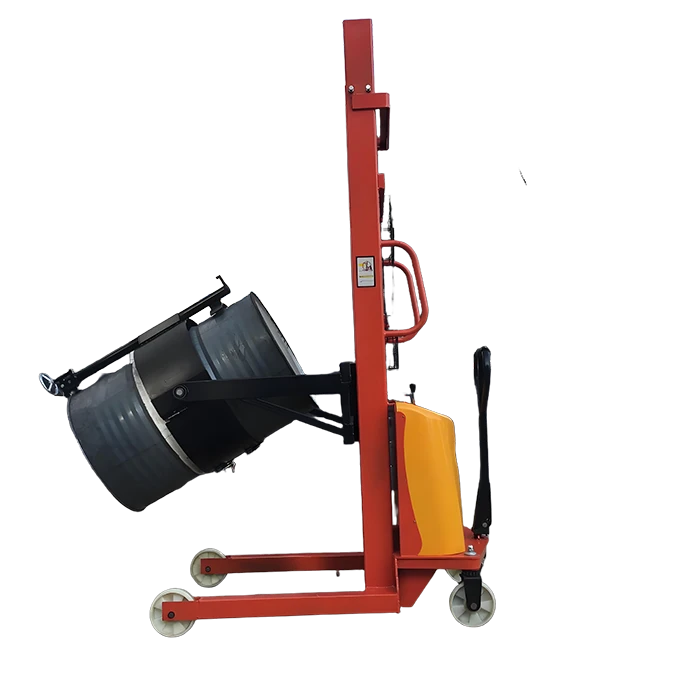

Electric drum lifter is a kind of handling equipment that combines manual pushing and electric lifting functions. It is mainly used for vertical lifting and horizontal transportation of containers such as oil drums. Its core functions include electric lifting of oil drums, flexible rotation and stacking operations, which are suitable for petrochemical, food, warehousing and other scenarios.
This type of equipment is usually equipped with a high-performance hydraulic system, with a load capacity of 400-450kg and a maximum lifting height of 1600-2000mm, which effectively improves the work efficiency of handling and lifting. Some models also integrate weighing systems or flipping functions to meet diverse needs such as dumping. In terms of safety, the equipment ensures the stability of operation through a sturdy gantry structure and anti-slip design.
It is widely used in many fields like the following:
Industrial manufacturing field:In the fine chemical fields such as coatings and dyes, it supports the safe transfer and unloading of liquid raw materials.Some semi-electric oil drum stackers are equipped with electronic weighing systems, which have functions such as zeroing, peeling, and weighing, with an accuracy of ±3‰. This can greatly improve the accuracy and efficiency of operations in the fine chemical industry, which requires precise control of material weight.
It can adapt to a variety of oil drum types: These devices are generally suitable for a variety of oil drums such as iron drums, round drums and plastic drums, meeting the diverse needs of industries such as coatings and dyes. Its electric lifting and manual flipping function design makes the pouring operation more convenient and quick.
Operate Video:
Feature of Electric Drum Lifter:
Main Features:
Oil cylinder: The sealed integral cylinder effectively avoids oil leakage and improves the overall safety performance.
Thickened C-shaped steel: Upgraded thicker, sturdy and durable, and long service life.
Reducer: Reliable and durable, small size, high transmission efficiency.
Mouthpiece: Strengthen the protection the upper and lower bayonet, so that the oil drum can be positioned accurately.
Double chain: The original factory comes standard with a high-strength drive chain. Bold reinforcement improves durability and ensures safer stacking of cargo.
Nylon pulley: It is produced by imported casting abrasive equipment, with no pores and no sand, thickened ribs, strong load-bearing and wear-resistant. The rear wheels have brakes and foot guards.
Product Specifications
|
Product Name |
Electric Drum Lifter |
|
Load capacity (kg) |
450kg |
|
Max Lifting Height |
1600/2000mm |
|
Power type |
Manual pushing and electric lifting |
|
Overall Dimensions (mm) |
1580*800*2080mm |
|
Battery(V/AH) |
12V/120AH |
|
Turning Radius |
1280mm |
Packing & Electric Drum Lifter:
Package Type:
Semi-electric oil drum lifter is usually packed with plastic wrap and foam packaging, and fixed with pallets. It can also be packed in wooden boxes according to customer needs, which will be more stable.
Our Advantages of Electric Drum Lifter:
Environmental protection, energy saving and low-cost maintenance: It is mainly powered by electricity, which is more environmentally friendly than fuel equipment and meets the needs of green production. It adopts maintenance-free batteries and low failure rate design, with low maintenance cost and simple operation.
Using electricity as a power source, semi-electric trucks do not produce exhaust emissions during operation, meeting the increasingly stringent environmental standards. For indoor working environments, the pollution-free feature is particularly important because it keeps the air fresh and protects the health of employees. In addition, compared with fully electric trucks using internal combustion engines, it requires less electricity, which helps reduce energy consumption and save costs.
